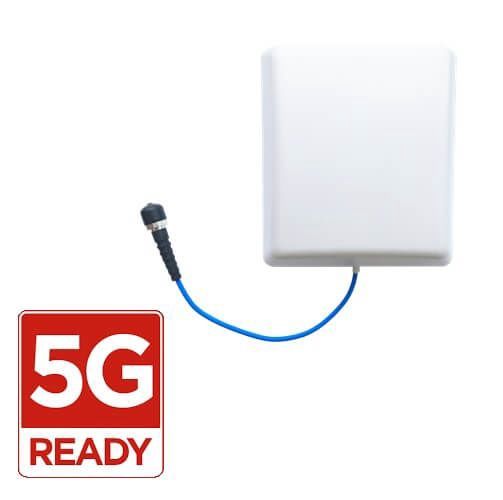

ANT-BH-WAL - BLACKHAWK WALL MOUNT 698-4000MHZ 5-7DBI PANEL ANTENNA -150DBC PIM

The Blackhawk Indoor Wall Mount Antenna is designed to enhance mobile coverage within buildings when connected to a cellular repeater system. Indoor panel antennas offer a lightweight and cost-effective solution for projecting mobile coverage in a forward direction. For instance, the panel antenna can be positioned to face down a hallway or mounted on the rear wall of a supermarket.

Key Features:

• Semi-directional design: This antenna provides a moderate 5 to 7 dBi gain, ensuring coverage is transmitted in a wide arc (between 60 and 90°, depending on the frequency band).
• Global compatibility: Supports all major 4G and 5G mobile networks worldwide.
• Low-PIM design: Enables the broadcasting of multiple carriers from a single antenna.

Frequency Band Gains:

• 5 dBi gain for frequencies ranging from 698 to 960 MHz.
• 7 dBi gain for frequencies ranging from 1710 to 4000 MHz.
