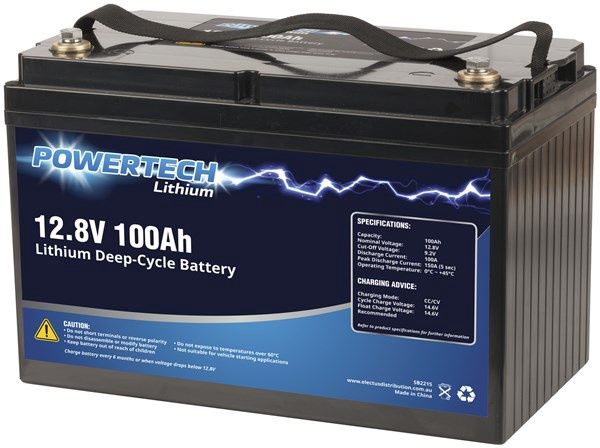

BATT LIFEPO4 12.8V 100AH DEEP CYCLE GN2

The Next Generation of Power Storage

The BATT LIFEPO4 12.8V 100AH DEEP CYCLE GN2 battery represents the future of power storage! While it may resemble traditional lead acid batteries on the outside, internally it utilizes cutting-edge prismatic LiFePO4 cells, widely used in portable devices.

An internal Battery Management System (BMS) ensures uniform charging and discharging of all cells. It also provides short circuit, over current, and reverse polarity protection, offering a higher degree of safety compared to unprotected lead acid batteries. This protection prevents rapid discharge under short circuit conditions, reducing risks of fire and damage. Additionally, the BMS manages discharge limits and cut-off voltage to safeguard the internal cells.

Perfect for Various Applications

This 100Ah model delivers continuous current up to 100A, with peaks reaching 150A. While it’s not suitable for use as a primary vehicle starting battery, it’s ideal for:

• House batteries
• Backup batteries
• Applications traditionally served by large lead acid/AGM batteries

Key Features

• Much lighter than Lead Acid and AGM Batteries
• Robust LiFePO4 Cells
• 10+ years life span
• 100A continuous output
• A-grade prismatic cells

Specifications Overview

Service Life: 10+ years
Cycle Life: 6000 cycles (≥ 80% capacity retention)
Battery Usage: Bulk Storage
Discharge Capability: Up to 4 batteries in parallel or 2 in series

Technical Specifications

• Operating Temperature: Up to 45°C
• Operating Humidity: 85%
• Storage Temperature: 0°C to 40°C
• Storage Humidity: 0% to 50%
• Dimensions: Width: 325mm, Height: 220mm, Depth: 170mm
• Weight: 11kg
• Nominal Voltage: 12.8V
• Cut-Off Voltage: 9.2V
• Continuous Current: 100A
• Peak Current: 150A (5 seconds)
• Recharging Voltage: 14.6V
• Standard Recharge Current: 40A
• Charging Method: Constant Current/Constant Voltage

Dangerous Goods Classification

• DG UN Number: 3480
• DG Ship Name: Lithium Ion Batteries
• DG Class: 9
• DG Pack Group: II - Medium Danger
• DG Hazardous Chemical Code: 4W

Packaging Details

• Packaged Volume: 19L
• Packaged Weight: 11kg
• Packaged Dimensions: Length: 38cm, Width: 20cm, Height: 25cm

Chemical Composition

• Battery Type: Lithium Ferrous Phosphate (LiFePO4)
• Internal Resistance: 60mΩ
• Connection Type: M8 Bolt/Nut

This lightweight, durable, and long-lasting battery is the ultimate solution for modern power storage needs.
