BEAM IR DOOR/ENTRY TX/RX REFL IP66 15M

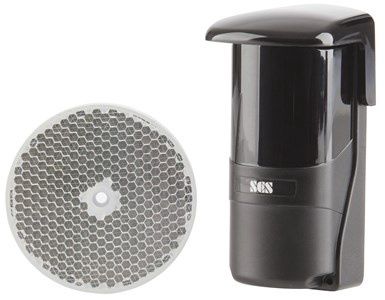

A heavy-duty version of the common beam sensor used in doorway announcers, this commercial-grade infrared beam is ideal for detecting when a person or object crosses a boundary or entrance way. Simply install the sensor module aligned with the reflector, and the relay output will be triggered by any object that breaks the beam.

Key Features:

• The sensor module projects a modulated beam that resists interference from sunlight and can be used over a range of up to 15m.
• Suitable for connection to existing lighting or security systems.
• Compatible with the extension buzzer and counter add-on units for our standard doorway beam.
• The polycarbonate casing is weatherproof with an anti-fog sensor window, making it suitable for outdoor use as well as dusty or damp environments.
• LED indicators are included to assist with installation and provide a visual indication of the beam status.

Installation Notes:

• The unit does not come with a plugpack but can be directly wired to 240V or use a 12V DC plugpack.
• If wiring into 240V mains, please ensure this is done by a licensed electrician.

Additional Specifications:

• Adjustable vertical beam angle
• Narrow beam angle
• NC tamper switch output
• Terminal block and cable gland included

Technical Details:

• Sensing range: 0.25 to 15m
• Enclosure Rating: IP66
• Relay output: NO / NC contact
• Output contact rating: 30VDC 1A
• Sensor module dimensions: 122(H) x 62(D) x 61(W) mm
• Reflector dimensions: 82mm (Diameter) x 8mm (Height)

Optional Accessories:

These require hard-wiring to achieve compatibility:

• LA-5188 Door Beam Extension Buzzer
• LA-5197 Door Beam Counter Module

Physical Specifications:

• Width: 61mm
• Height: 122mm
• Depth: 62mm
• Packaged Volume: 1.26L
• Packaged Weight: 0.31kg
• Packaged Length: 18.4cm
• Packaged Width: 9.1cm
• Packaged Height: 7.5cm

Additional Information:

• Type of Siren: Multi-tone
• Mounting Method: Bracket
• Weatherproof: Yes
• Effective Range: 15m
• Reflector dimensions: 82mm diameter, 8mm height
