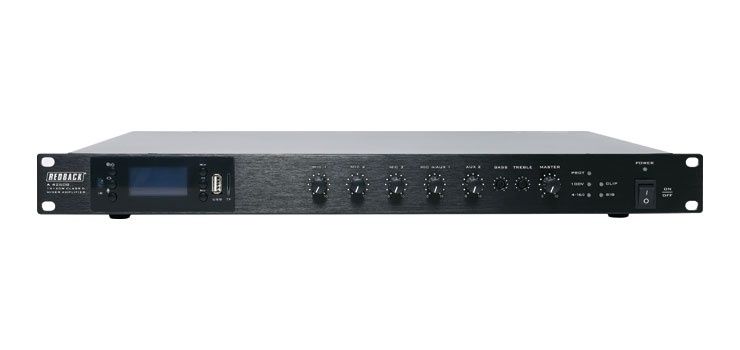

Compact 100V Class D Bluetooth PA Mixer Amplifier 120W

Overview

These compact Class-D design amplifiers provide multi-source mixing with USB/SD card/FM tuner audio playback and Bluetooth streaming functionality. They combine an amplifier and audio source in a single rack unit, making them ideal for retail, offices, venues, and other commercial buildings.

Dimensions: 484 x 295 x 44 mm

Efficient Class-D Design

• Power Efficiency: Utilizes active power factor correction (APFC) switch mode technology, achieving an 85% efficiency rating.
• Cool Operation: Runs cooler (<55°C) for a longer lifespan and reduced environmental impact.
• Energy Savings: Features low power consumption and reduced heat generation.

Connectivity and Input Options

• Screw Terminal Connections: Balanced inputs, 100V/4-16Ω output, and 24V DC input.
• Stereo RCA Options: Includes 2 line inputs and 1 line output.
• Mic Inputs: Four mic inputs with line/mic/phantom power options.
• Emergency Priority Input: Top-priority input for alert/evac tone generator.

Music Playback

• Versatile Playback Options: Supports SD card, USB memory stick, and Bluetooth-enabled devices.
• Front Panel Controls: Track selection and play/pause controls for easy operation.

Note: Remote control requires 1 x CR2032 coin cell battery.

Features

• Mixer amplifier with in-built SD/USB/FM tuner/Bluetooth music source
• 85% efficient Class-D power performance
• Low power consumption and minimal heat generation
• Compact 1RU case design
• Bass and treble control
• Front panel mic input
• Protection circuitry with LED indicators for signal, peak, protection, and power
• Selectable 100V line/4-16Ω output
• Mic/Line/Phantom Power options on Mic 1-4
• 24V DC battery backup power input
• Emergency priority input (Mic 1)
• Adjustable VOX muting

Specifications

General

• Rated Power: 120W
• Output Level: 4-16Ω/100V
• Cooling Mode: Air cooling
• Protection Mode: Overheat/Short circuit
• Operation Temperature: +5°C ~ +40°C
• Storage Temperature: -20°C ~ +70°C
• Voltage: ~240V 50Hz
• Power Consumption: 180W
• Weight: 3.9kg
• Dimensions: 484 x 295 x 44 mm

Input Sensitivity

• Mic: 2mV ± 1mV
• Line: 100mV ± 20mV
• AUX: 350mV ± 20mV
• EMC: 775mV ± 40mV
• Pre-Output: 1V ± 50mV/100Ω

Frequency Response

• Audio Out: 20Hz ~ 20KHz (±3dB)
• Mic: 200Hz ~ 16KHz (±3dB)

Additional Details

• Mic Tones: ±10dB at 100Hz (Low), ±10dB at 10KHz (High)
• Music Tones: ±10dB at 100Hz (Low), ±10dB at 100Hz (High)
• SNR: Mic ≥ 65dB, Music ≥ 70dB
• THD+N: ≥ 0.1%

Specifications are subject to change without notice.
