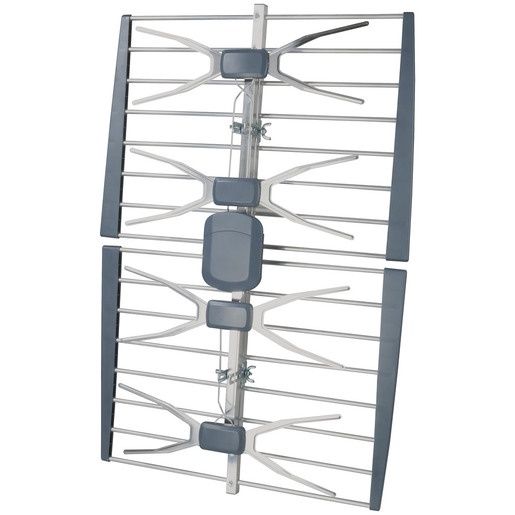

LT3154 ANTENNA TV UHF PHASED ARRAY KINGRAY

This heavy-duty UHF phased array is perfect for problem digital reception areas, especially where direct line of sight to the transmitter is unavailable or where multipath issues arise due to reflected signals. It is designed to receive either horizontal or vertical signals simply by adjusting the orientation of the heavy-duty mounting bracket/U-bolt assembly. Additionally, the LTE filter ensures protection against interference from 4G/LTE telephone communications.

Specifications:

• Gain: 12.5dB
• Wind Load (N): 78
• Frequency (MHz): 519-694
• Beamwidth (Horizontal): +/-25 degrees
• Beamwidth (Vertical): +/-20 degrees
• Weight (Kg): 1.65
• Size (mm): 815 x 545
• Channels: 27-51
• F Connector: Yes
• Front-to-Back Ratio: 22dB
• Number of Elements: 4
• Impedance: 75 Ohm

This combination of features makes it a reliable and robust solution for challenging reception conditions.
