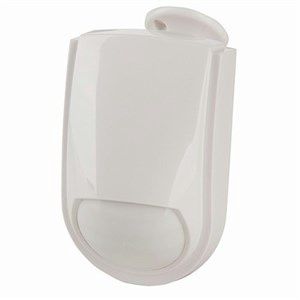

PIR PULSE QUAD ELEMENT TEMP COMP NC 12V

Reliable and effective dual and quad element PIR detectors are ideal for home or office security applications. These units are compact, attractive, and easy to install, with features that ensure dependable performance.

Each unit includes a built-in automatic temperature compensation feature to help eliminate false triggers in certain environments. The detectors are equipped with 110-degree convex honeycomb hemispherical infrared lenses and have an extremely low current draw of just 8mA. Additionally, both models come with a swivel bracket for quick and convenient position adjustment. The quad unit offers higher levels of detection compared to the dual-element model.

Key Features:

• Operating voltage: 9-15VDC
• Current draw: 8mA nominal at 12VDC
• Detection type: Dual element low noise pyroelectric sensor
• Range: 12m max
• Field of view: 110 degrees max
• Mounting height: 1.5m-2.4m
• LED indicator: Walk test enabled by internal link
• Alarm output: NC, when cover on, 28VDC 0.1A
• Tamper switch
• Warm-up period: 90 seconds
• Pulse count: 1, 2, and 4 pulses selectable

This advanced security solution ensures reliable performance while being easy to integrate into your security system.
