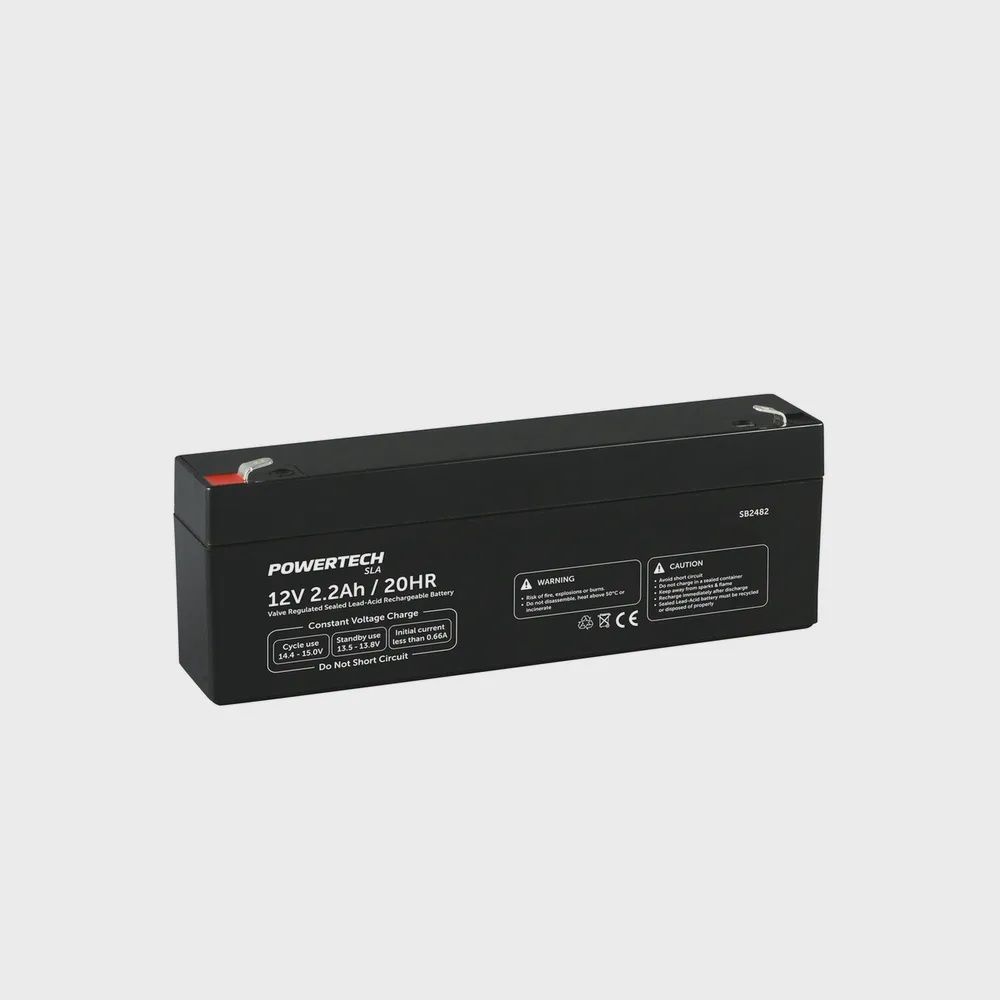

SB2482 - BATT SLA 12V 2.2AH

These versatile Sealed Lead Acid (SLA) batteries have a huge range of uses and are often found in:

• Kids' ride-on toys
• PA Systems
• Alarm systems
• Rechargeable torches
• And more!

Tech Specs:

• Nominal Voltage: 12V
• Cut-Off Voltage: 10.5V
• Peak Discharge Current: 11A (5sec)
• Spade Size: F1

Charging Advice

• Charging Mode: CV
• Cycle Charge Voltage: 14.4V-15V
• Float Charge Voltage: 13.5V-13.8V
• Recommended Charging Current: 0.66A

Specifications

Battery Details

• Battery Usage: Rechargeable
• Battery Chemical Composition: Sealed Lead Acid (SLA)
• Battery Peak Current: 33.0A
• Amp Hour Rating: 2.2Ah
• 20 Hour Capacity: 2.2Ah
• 10 Hour Capacity: 1.98Ah
• 5 Hour Capacity: 3.52Ah
• 1 Hour Capacity: 1.32Ah
• Internal Resistance: 50.0 Ω
• Connection Type: Spade Terminals
• Type of Battery: SLA Block

Battery Charging

• Recharging Voltage: 14.4V-15.0V
• Standard Recharge Current: 660.0mA
• Recharging Time: 20.0 hours

Product Dimensions

• Length: 178.0mm
• Height: 66.0mm
• Depth: 34.0mm

Packaged Dimensions

• Packaged Size: 18.5cm (Length) x 7.6cm (Width) x 4.3cm (Height)

This SLA battery is a reliable and versatile power source, perfect for various applications!
